Closes #560. Composes the active inbox's unread count over the base favicon as an SVG badge, served as a percent-encoded data: URL, so new mail is visible on a tab that is not focused — including when the browser collapses tabs to icon-only, where a title-based count disappears entirely. The base icon is read from the rendered <link rel="icon"> rather than from config, so admin and per-domain branding overrides are inherited for free: the count is drawn on whatever logo the deployment actually serves. Keeping the badge in SVG rather than rasterising to a canvas also means the browser can rasterise it at whatever size it asks for, so a HiDPI tab is not served a 16px bitmap. Notes on the approach: - The badge link is an *additional* icon link that we append and mark as ours; we never remove or mutate a link we did not create. Next's metadata icons are rendered by React, which keeps a fiber pointing at that DOM node, so removing it would leave React holding a detached node and throw "Cannot read properties of null (reading 'removeChild')" on the next commit that deletes the fiber. Appending instead means the last-declared icon wins, and non-SVG fallback links survive with their type/sizes intact. (The usual recipe for this feature — assign canvas.toDataURL() to the existing link's href — does both of the things that break here.) - Every change of state is an *insertion* of a fresh link of ours, never a mutation or a removal, because that is the only signal a browser reliably re-reads the favicon on. Firefox ignores an in-place href change, and it equally ignores a removal — so clearing the badge by deleting our link left a stale count painted on the tab until a hard reload. Clearing it instead inserts a new link of ours carrying the original base href. - Holding last place has to be defended: on a client-side navigation React re-hoists its metadata icon link into <head>, landing after ours, and the base icon silently wins again. A MutationObserver on <head> moves our own link back to the end whenever a foreign icon link appears — moving only our node, never anyone else's. It no-ops once ours is last again, so a move cannot feed itself. - The badge is a full-width band across the foot of the icon, drawn to the metrics measured from Gmail's own 16px favicon: band height 0.625 of the icon, digit cap height 0.44, flush to the edges, corners rounded by about a pixel. Full width is what keeps a three-glyph label legible — rounded ends waste exactly the horizontal space it needs. Neutral white with black digits rather than the conventional red: faviconUrl is admin-overridable and Bulwark's own icon is rgb(219,45,84), so a red badge sat red-on-red. - The base SVG may be admin-uploaded, and the branding route deliberately serves it under a sandboxing CSP because SVG can carry script. Re-emitting it as a same-origin data: URL would un-fence that, so script, foreignObject and every on* handler are stripped before serialising. - Mounted in the root layout, not on the mail route: the badge belongs to the tab, so mounting it on the page would clear it on every hop to settings, calendar or contacts.
Bulwark Webmail
A modern, self-hosted webmail client for Stalwart Mail Server, built with Next.js and the JMAP protocol.
Installer
New in 1.6.4: a web-based setup wizard runs on first launch – no .env.local editing, no shelling into the container.
Point a browser at the running container and the wizard guides you through:
- Server – probe one or more JMAP endpoints, optional auto-pick by email domain, Stalwart feature toggle
- Auth – OAuth2 / OIDC discovery and validation, or basic-auth fallback
- Security – generate or paste a
SESSION_SECRET, opt into settings sync - Logging – text or JSON, level
- Branding – upload favicon, app logos, login logos, and company / legal URLs
- Review – grouped summary with an advanced toggle for the full config
- Admin – set the initial admin password and optionally drop a
.config-lockedmarker so the config volume can be remounted read-only
The wizard writes to ADMIN_CONFIG_DIR (./data/admin by default). Setting JMAP_SERVER_URL in the environment skips the wizard and uses env-managed configuration instead.
Screenshots
 |
 |

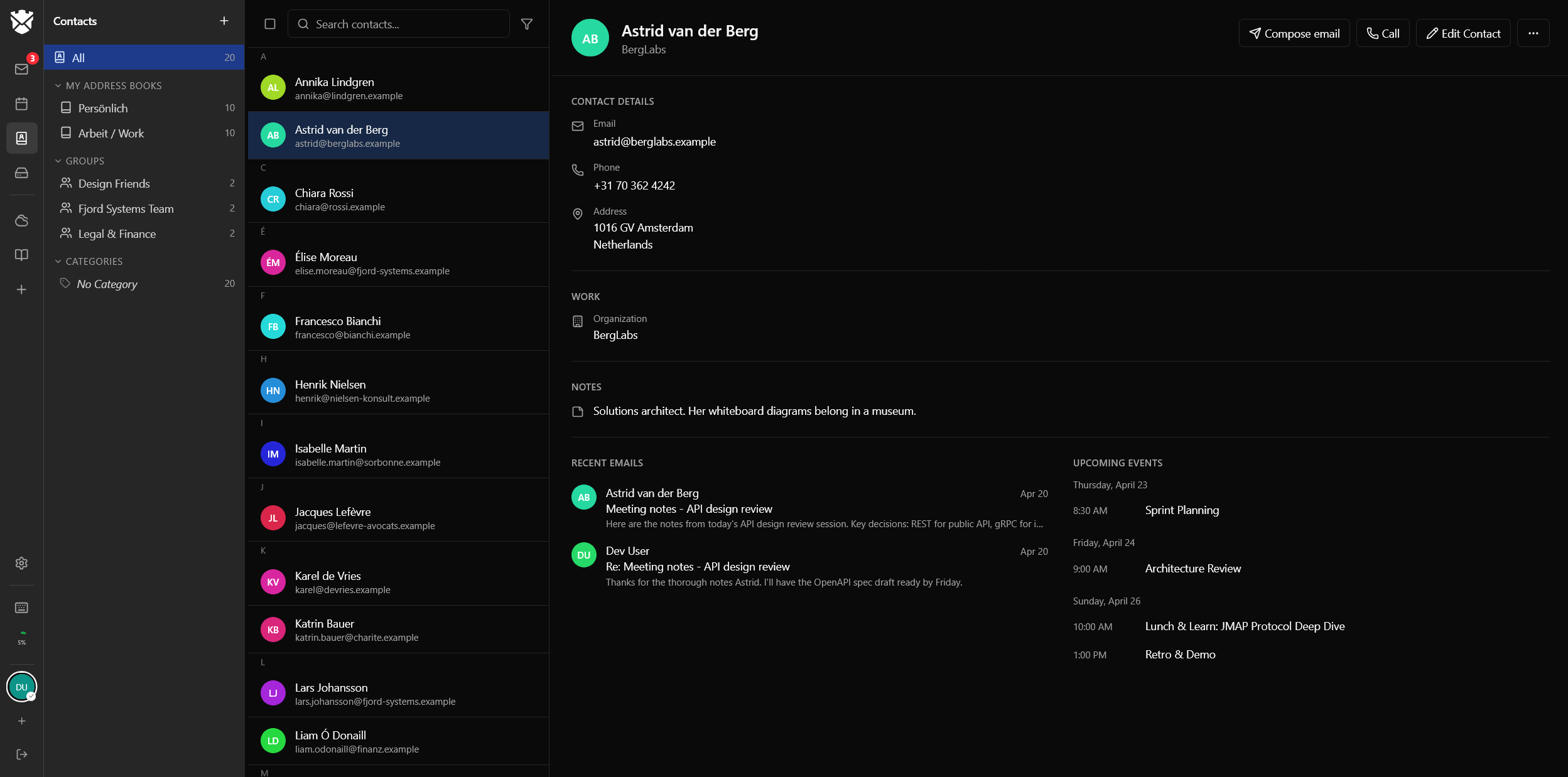

| Calendar – month, week, day, and agenda views with drag-to-reschedule, iMIP invitations, and CalDAV subscriptions. | Contacts – multiple address books, groups, vCard import/export, and autocomplete in the composer. |
 |
 |

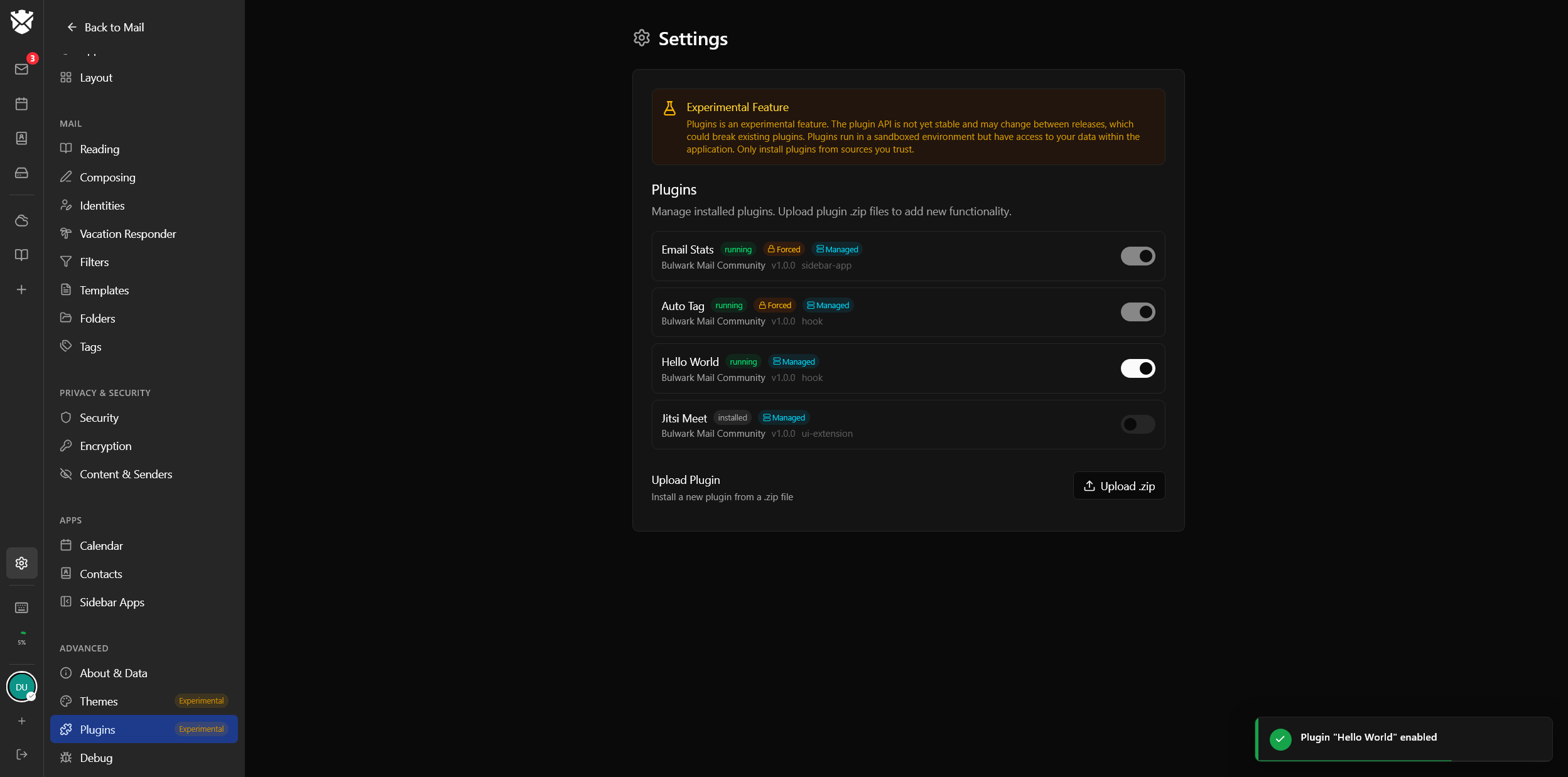

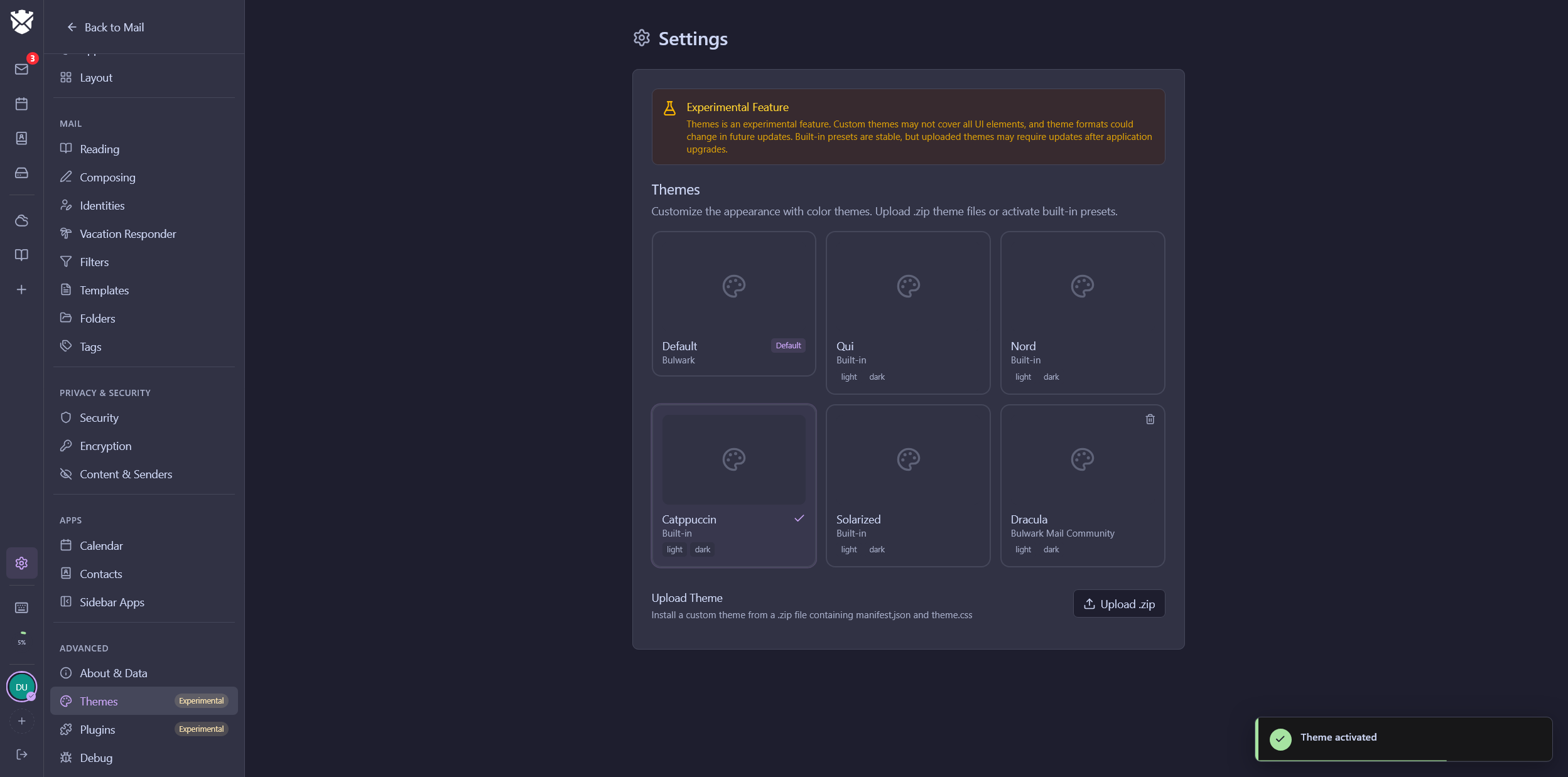

| Themes – bundled color themes or upload your own as ZIP bundles; admins can enforce presets. | Plugins – extend the client with bundled or third-party plugins installed from a .zip file. |
|
 |

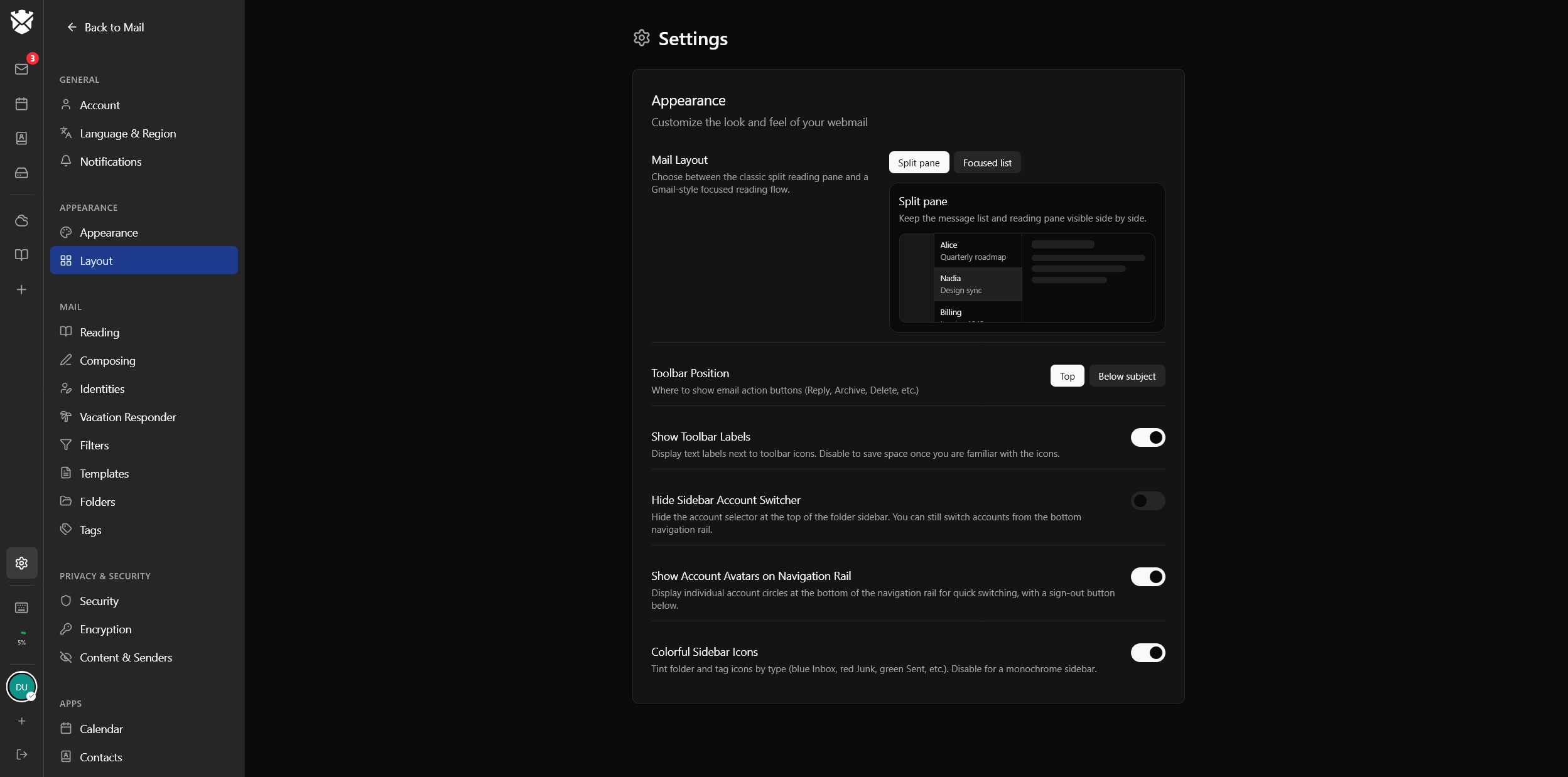

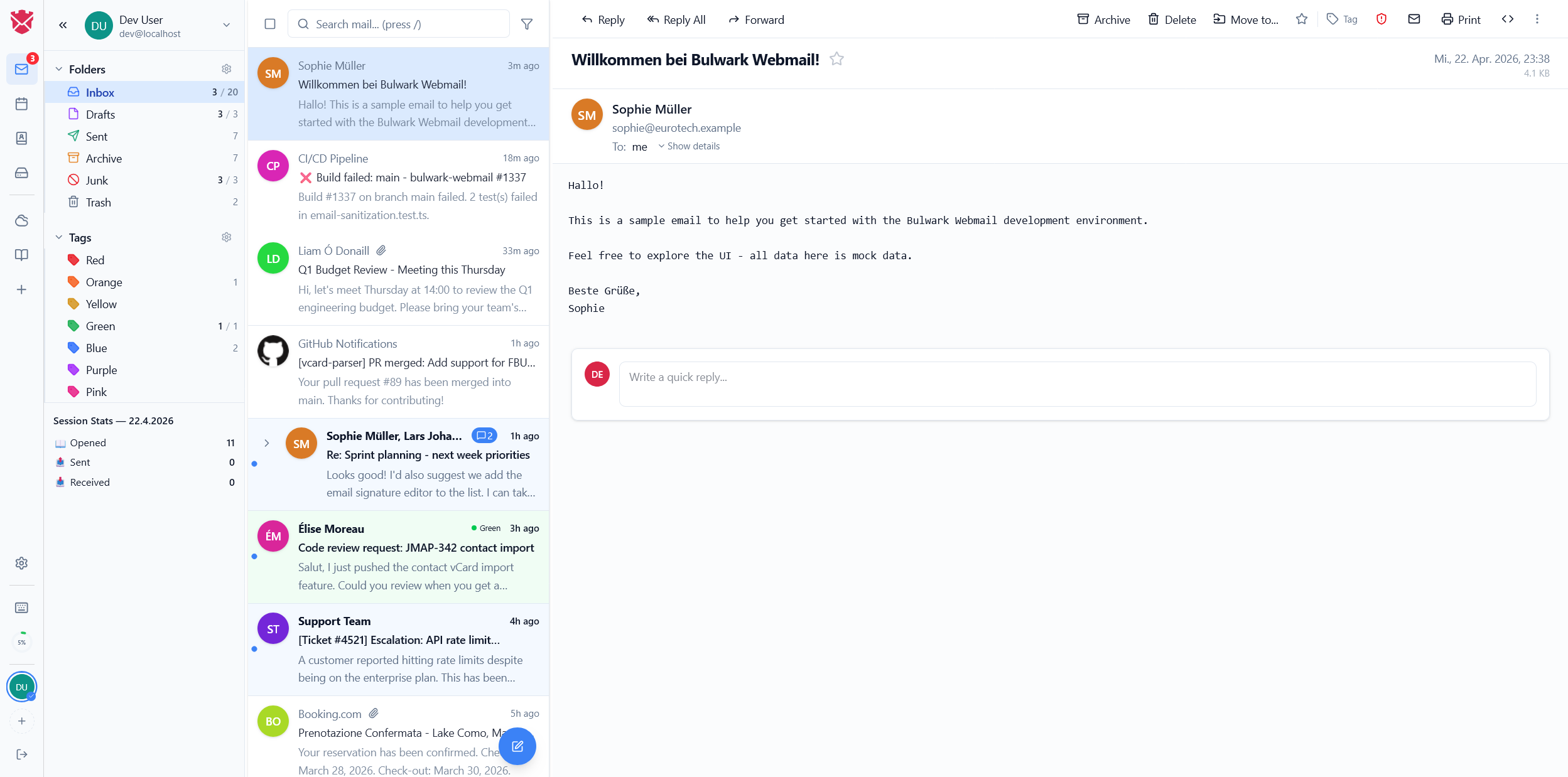

| Light mode – full theme support with intelligent color transformation for HTML emails. | Settings – appearance, identities, filters, templates, security, and more. |
Overview
Bulwark is a full webmail suite, not just an inbox. It bundles the four apps most self-hosters end up wanting on the same login:
- Mail – threading, unified inbox, cross-account "All accounts" views, full-text search, Sieve filters, S/MIME, templates
- Calendar – month/week/day/agenda, recurring events, iMIP invitations, CalDAV subscriptions
- Contacts – multiple address books, groups, vCard import/export
- Files – Stalwart's JMAP FileNode storage with previews and folder upload
Plus the infrastructure around them: a web setup wizard, OAuth2 / OIDC SSO, TOTP 2FA, multi-account with HTTP/2 connection pooling, 18 languages, PWA install, dark/light themes, a plugin system with an extension marketplace, and an admin dashboard.
Full feature list: FEATURES.md.
Quick Start
Docker
docker run -d -p 3000:3000 ghcr.io/bulwarkmail/webmail:latest
Or with Docker Compose:
docker compose up -d
On first launch, open http://localhost:3000 – the web setup wizard walks you through JMAP server, OAuth, branding, and the admin password. No .env.local editing required. Existing installs that already define JMAP_SERVER_URL in their environment skip the wizard and keep the env-managed flow described under Configuration.
From Source
git clone https://github.com/bulwarkmail/webmail.git
cd webmail
npm install
npm run build && npm start
# Then open http://localhost:3000 to run the setup wizard
Development
npm run dev # Dev server with a mock JMAP server
npm run typecheck
npm run lint
Configuration
Most deployments are configured through the setup wizard (on first launch) and the admin dashboard thereafter; values are written to the admin config directory rather than .env.local. Environment variables remain supported for operators who prefer file-driven configuration or read-only / immutable infrastructure. When an environment variable is set, it takes precedence over the corresponding admin-managed value, so setting JMAP_SERVER_URL will hide that field from the wizard and lock it in the admin UI.
All variables are evaluated at runtime, so Docker deployments can be reconfigured without rebuilding. Edit .env.local:
# Optional – overrides whatever the wizard writes
JMAP_SERVER_URL=https://mail.example.com
APP_NAME=My Webmail
Server listen address
HOSTNAME=0.0.0.0 # Default; use "::" for IPv6
PORT=3000
OAuth2 / OIDC
OAUTH_ENABLED=true
OAUTH_CLIENT_ID=webmail
OAUTH_CLIENT_SECRET= # optional, for confidential clients
OAUTH_CLIENT_SECRET_FILE= # path to a file containing the secret
OAUTH_ISSUER_URL= # optional, for external IdPs
Endpoints are auto-discovered via .well-known/oauth-authorization-server or .well-known/openid-configuration.
Session & settings sync
SESSION_SECRET= # openssl rand -base64 32
SESSION_SECRET_FILE=/session-secret # path to a file containing the secret
SETTINGS_SYNC_ENABLED=true
SETTINGS_DATA_DIR=./data/settings # mount as a volume in Docker
Credentials are encrypted with AES-256-GCM and stored in an httpOnly cookie (30-day expiry). Settings sync stores per-account preferences encrypted at rest and requires SESSION_SECRET.
Custom JMAP endpoint
ALLOW_CUSTOM_JMAP_ENDPOINT=true
Shows a "JMAP Server" field on the login form. External servers must CORS-allow the webmail origin.
Branding & PWA
APP_NAME=My Webmail
APP_SHORT_NAME=Webmail
APP_DESCRIPTION=Your personal mail
FAVICON_URL=/branding/favicon.svg
PWA_ICON_URL=/branding/icon.svg # falls back to FAVICON_URL
PWA_THEME_COLOR=#3b82f6
PWA_BACKGROUND_COLOR=#ffffff
APP_LOGO_LIGHT_URL=/branding/logo-light.svg
APP_LOGO_DARK_URL=/branding/logo-dark.svg
LOGIN_LOGO_LIGHT_URL=/branding/login-light.svg
LOGIN_LOGO_DARK_URL=/branding/login-dark.svg
LOGIN_COMPANY_NAME=My Company
LOGIN_WEBSITE_URL=https://example.com
LOGIN_IMPRINT_URL=https://example.com/imprint
LOGIN_PRIVACY_POLICY_URL=https://example.com/privacy
# Per-domain overrides (optional). When the webmail is served on multiple
# hostnames, each host can override any subset of the branding fields above.
# Match is on the request Host (or X-Forwarded-Host). Use "*.example.com" to
# match any subdomain. Unset fields fall back to the global values.
DOMAIN_BRANDING=[{"host":"maildomain1.com","loginCompanyName":"Company One","loginLogoLightUrl":"/branding/one.svg"},{"host":"maildomain2.com","loginCompanyName":"Company Two"}]
Extension directory
EXTENSION_DIRECTORY_URL=https://extensions.bulwarkmail.org
Enables the admin marketplace for browsing and installing plugins and themes.
Stalwart integration & logging
STALWART_FEATURES=true # password change, Sieve filters, etc.
LOG_FORMAT=text # "text" or "json"
LOG_LEVEL=info # error | warn | info | debug
Admin data directories
ADMIN_CONFIG_DIR=./data/admin # operator-authored: config.json, policy.json, plugins/, themes/
ADMIN_STATE_DIR=./data/admin-state # runtime: audit log, login timestamps, setup token
ADMIN_CONFIG_READONLY=true # enforce read-only mode at the app layer
The split lets you mount the config volume read-only after the setup wizard completes. Legacy installs that pre-date the split keep working through ADMIN_DATA_DIR.
Subpath / reverse proxy mount
To serve the webmail at a subpath (e.g. https://example.com/webmail):
NEXT_PUBLIC_BASE_PATH=/webmail
NEXT_PUBLIC_LOCALE_PREFIX=always # avoids next-intl rewrite loops
Unlike most other variables, NEXT_PUBLIC_BASE_PATH is read at build time because Next.js bakes it into emitted asset URLs. To use it with the published Docker image, build your own image with the variable set:
docker build --build-arg NEXT_PUBLIC_BASE_PATH=/webmail -t bulwark-webmail .
Then point your reverse proxy at the container without stripping the prefix - the app expects to receive requests under /webmail/... and serves all routes (/webmail/api/..., /webmail/_next/static/..., /webmail/sw.js, etc.) accordingly.
Keyboard Shortcuts
| Key | Action |
|---|---|
j / k |
Navigate between emails |
Enter / o |
Open email |
Esc |
Close / deselect |
c |
Compose |
r / R |
Reply / Reply all |
f |
Forward |
s |
Star |
e |
Archive |
# |
Delete |
/ |
Search |
? |
Show all shortcuts |
Tech Stack
| Framework | Next.js 16 with App Router |
| Language | TypeScript |
| Styling | Tailwind CSS v4 |
| State | Zustand |
| Protocol | Custom JMAP client (RFC 8620) |
| i18n | next-intl |
| Icons | Lucide React |
Why Stalwart?
Stalwart is a Rust mail server with native JMAP support – not IMAP/SMTP with JMAP bolted on. It handles JMAP, IMAP, SMTP, and ManageSieve in a single self-hosted binary with no third-party dependencies.
Contributing
See CONTRIBUTING.md.
License
GNU AGPL v3. This repository preserves the original MIT attribution for the fork lineage in NOTICE.
Acknowledgments
Thanks to root-fr/jmap-webmail and @ma2t for the groundwork this project builds upon.
